Issue

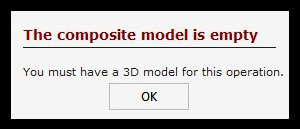

The Composite Model Is Empty error appears when creating a roughing or finishing toolpath.

What This Means
Vectric cannot find a model to machine because no component or model is present in the 2D or 3D View.

What to Check

  • Confirm that a component or 3D model has been created or imported
  • Make sure the model is visible in the 2D and/or 3D View
  • Verify the model is included in the Composite Model
  • Check that components are enabled and not hidden or suppressed

How to Fix

  • Create or import a 3D component before generating the toolpath
  • Rebuild or recalculate the Composite Model
  • Adjust the model’s position and height so it exists within the material thickness
  • Ensure the correct components are selected for the composite

Tip
If nothing appears in the 3D View, the Composite Model is empty—and roughing or finishing toolpaths cannot be created until a model exists.
